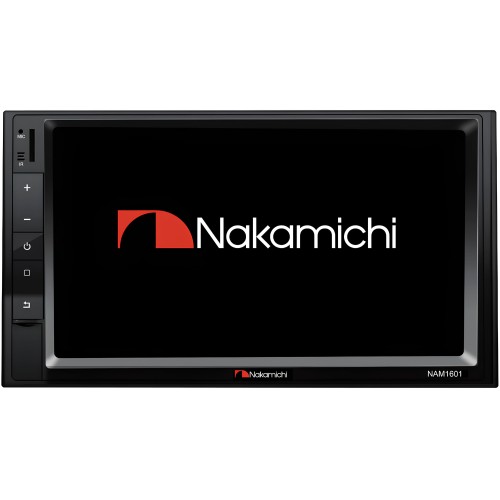

Nakamichi AV Media Receiver
NAM1601

• General Operating Voltage: 14.4V (10.5-16V)
• Net Weight: 500 gms
• TFT Screen Size 7”
• Display Resolution: 800 x 480
• Contrast Ratio: 500
• Brightness: 400 nit
• Bluetooth Version: BT: 4.0 + EDR (2 to 3 times faster than BR)
• Frequency: 2.4GHZ Max Range: 5m
• Audio Max Power: 4 × 50W
• Pre-out impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• Video External Video Input system: NTSC / PAL / SECAM
• External Video Input: 1VP-P / 75Ω
• Video Format H264 / MP4 / AVI / MKV / FLV
• Audio Format MP3 / APE / AAC / FLAC
• USB Interface USB Readable/chargeable: (5±0.25V / 1A)
• Radio FM Frequency: 87.5-108.0MHZ AM Frequency: 522-1620KHZ Presets: 18 FM, 12 AM.

Panel Installation Size: 170mm  X 96mm / 178mm x 100mm
